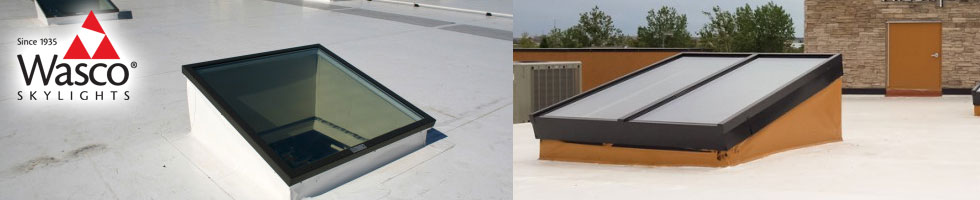

Wasco Commercial Skylights
Commercial Products
Quality Commercial Skylight Products for Architects and Builders

Offering a full line of quality structural skylights with a wide range of glazing, finishing and limitless design provides customization versatility for commercial skylighting projects. Wasco Skylights meets stringent design criteria with the Pinnacle, Classic, Low Profile, Vaulted, and Unit Skylights with glass, acrylic, and polycarbonate glazing options. The Pinnacle system is available as Miami-Dade and FBC hurricane tested and approved structures for all geographical locations.

Ease of installation saves on labor costs and time spent on the job. And our aesthetically superior structural metal-framed skylights are available in various framing sizes to accommodate loading demands. With a full engineering and knowledgeable customer service staff, Wasco provides the quickest product turnaround and continual support from inception to completed project for architects and contractors.

Architects and contractors can search glazed skylights, glazing and finishing.


Plastic Glazed
Glass Glazed
Glass Glazed
Our Cluster Systems allow for the creation of dramatic skylighting over large enclosures, utilizing site-built structural grid supports on flat roof applications. Theyre glazed in acrylic or polycarbonate in clear, tinted or translucent.

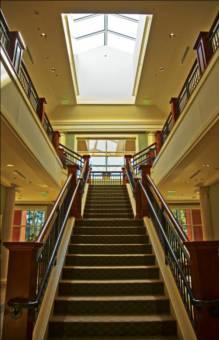

A dramatic Accent Above StairsModel CL Cluster System: Designed to install on most structural supports. Pitch is 1/4":12. Maximum module size: 80 x 80.

Model EG Extruded Gutter Cluster System: Insulated gutters engineered for applications where extra water-carrying capacity is required or barrel vaults are to be joined in tandem. Pitch is 1/4":12 to properly drain water. All modules are thermally broken and available in widths of 36" to 120";.

Photos

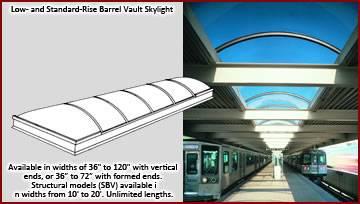

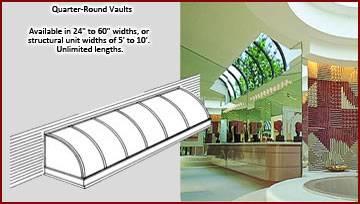

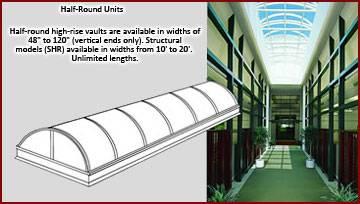

Continuous Vaulted Systems
Polycarbonate Glaze & Translucent Options

Wascos Continuous Vault systems are designed for unlimited applications utilizing site-built curbs on both flat and pitched roofs. Glazed with your choice of acrylic or polycarbonate single or double-glazed in-fill in clear, tinted and thermal translucent options.

Vault Skylight Specifications
Unlike other vaulted systems, ribs may be spaced at 48" on center and the unit will still meet a 40psf live load. In addition, no lateral bracing is required on units up to 10 feet wide.

Types
Photos
Circular Skydomes

Wascos circular Skydomes feature a 1 fiberglass-insulated aluminum skin, with thermoformed acrylic single or double glazing. Please note that Circular Skydomes are not Thermalized.

Domed skylights, dome windows and replacement dome units add beautiful natural light to commercial project.

  • Deck mounted
  • 9" or 12" curb height
  • Optional copper cladding available

Unit Skylights - Deck & Curb Mount

For affordable alternatives to custom skylighting systems, Wasco Commercial Unit Skylights offer you a variety of choices. Our standard and Thermalized solar Skydomes come in both deck-mount and curb-mount configurations, for both flat and pitched roofs, in Circular, Pyramid and Dome modelsand several different glazing options. We also offer OSHA-compliant Fall Protection skylights and screens. All with Wasco quality you can trust on the job and for years to come.

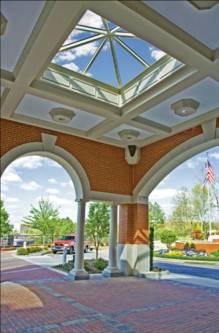

Pyramid & Extended Pyramid Skylights

Our light-framed, economical Classic Skylights for both pitched and flat roof applications - spans up to 8 x 8 in pyramid, 5 by unlimited length in extended pyramids.

  • Standard pitches available include 5:12, 7:12 and 12:12.
  • Components are prefabricated for easy installation on site
  • Concealed fasteners and narrow framing members for clean, aesthetically pleasing appearance
  • Integral condensation gutters drain water to the exterior fo full moisture control
  • Iso-bar thermal break around perimeter sill minimizes condensation on aluminum components

Structural Glass Skylights -- Pinnacle

For spectacular large-scale custom structures spanning up to 40 feet, and at any pitch you desire between 15 and 60.

With its variable-pitch hinge design, the Pinnacle offers you the versatility of a custom configured structural skylight system with the reliability and cost savings of standardized engineering, construction and installation. Quickest turnaround time for custom built orders. Fast on-site assembly and installation. Enjoy the beauty of natural daylighting in a high performance structural glass skylight design.

Support Configurations for Pinnacle Glass Glazed Pyramid Skylights for Commercial Designs:

  • Pinnacle 300: supports spans up to 14' wide. 3" aluminum rafter tube depth, (in a double pitch configuration).
  • Pinnacle 350: supports spans up to 18' wide. 3.5" aluminum rafter tube depth,
  • Pinnacle 600: supports spans up to 30' wide (in a double pitch configuration). 6" aluminum rafter tube depth,
  • Pinnacle 900: supports spans up to 40' wide. 9" aluminum rafter tube depth,
  • Pinnacle FSFG


Pinnacle Hurricane Resistant: 3.5 or 6" aluminum rafter, tested to meet 80 psf design pressure, and small and large missile impact. Available with laminated or insulated glazing.
Photos

Octogonal Skylights
Our light-framed, economical Classic Skylights for both pitched and flat roof applications - spans up to 8 x 8 in pyramid, 5 by unlimited length in extended pyramids.
  • Standard pitches available include 5:12, 7:12 and 12:12.
  • Components are prefabricated for easy installation on site
  • Concealed fasteners and narrow framing members for clean, aesthetically pleasing appearance
  • Integral condensation gutters drain water to the exterior fo full moisture control
  • Iso-bar thermal break around perimeter sill minimizes condensation on aluminum components

Structural Glass Skylights -- Pinnacle

For spectacular large-scale custom structures spanning up to 40 feet, and at any pitch you desire between 15 and 60.

With its variable-pitch hinge design, the Pinnacle offers you the versatility of a custom configured structural skylight system with the reliability and cost savings of standardized engineering, construction and installation. Quickest turnaround time for custom built orders. Fast on-site assembly and installation. Enjoy the beauty of natural daylighting in a high performance structural glass skylight design.

Support Configurations for Pinnacle Glass Glazed Pyramid Skylights for Commercial Designs:

  • Pinnacle 300: supports spans up to 14' wide. 3" aluminum rafter tube depth, (in a double pitch configuration).
  • Pinnacle 350: supports spans up to 18' wide. 3.5" aluminum rafter tube depth,
  • Pinnacle 600: supports spans up to 30' wide (in a double pitch configuration). 6" aluminum rafter tube depth,
  • Pinnacle 900: supports spans up to 40' wide. 9" aluminum rafter tube depth,
  • Pinnacle FSFG

Pinnacle Hurricane Resistant: 3.5 or 6" aluminum rafter, tested to meet 80 psf design pressure, and small and large missile impact. Available with laminated or insulated glazing.



Single Pitch Skylights

Natural Daylighting for Restoration or Replacement -- Pinnacle

For spectacular large-scale custom structures spanning up to 40 feet, and at any pitch you desire between 15 and 60.

With its variable-pitch hinge design, the Pinnacle offers you the versatility of a custom configured structural skylight system with the reliability and cost savings of standardized engineering, construction and installation. Quickest turnaround time for custom built orders. Fast on-site assembly and installation. These single pitch configurations meet the needs for skylight restoration, skylight replacement or any commercial project that requires high performance and high quality design.

  • Pinnacle 300: supports spans up to 14' wide. 3" aluminum rafter tube depth, (in a double pitch configuration).
  • Pinnacle 350: supports spans up to 18' wide. 3.5" aluminum rafter tube depth,
  • Pinnacle 600: supports spans up to 30' wide (in a double pitch configuration). 6" aluminum rafter tube depth,
  • Pinnacle 900: supports spans up to 40' wide. 9" aluminum rafter tube depth,
  • Pinnacle FSFG

Pinnacle Hurricane Resistant: 3.5 or 6" aluminum rafter, tested to meet 80 psf design pressure, and small and large missile impact. Available with laminated or insulated glazing.

Photos

Double Pitch Skylights

Our light-framed, economical Classic Skylights for both pitched and flat roof applications - spans up to 8 x 8 in pyramid, 5 by unlimited length in extended pyramids.

  • Standard pitches available include 5:12, 7:12 and 12:12.
  • Components are prefabricated for easy installation on site
  • Concealed fasteners and narrow framing members for clean, aesthetically pleasing appearance
  • Integral condensation gutters drain water to the exterior fo full moisture control
  • Iso-bar thermal break around perimeter sill minimizes condensation on aluminum components

Structural Glass Skylights -- Pinnacle

For spectacular large-scale custom structures spanning up to 40 feet, and at any pitch you desire between 15 and 60.

With its variable-pitch hinge design, the Pinnacle offers you the versatility of a custom configured structural skylight system with the reliability and cost savings of standardized engineering, construction and installation. Quickest turnaround time for custom built orders. Fast on-site assembly and installation. Enjoy the beauty of natural daylighting in a high performance structural glass skylight design.

Support Configurations for Pinnacle Glass Glazed Pyramid Skylights for Commercial Designs:

  • Pinnacle 300: supports spans up to 14' wide. 3" aluminum rafter tube depth, (in a double pitch configuration).
  • Pinnacle 350: supports spans up to 18' wide. 3.5" aluminum rafter tube depth,
  • Pinnacle 600: supports spans up to 30' wide (in a double pitch configuration). 6" aluminum rafter tube depth,
  • Pinnacle 900: supports spans up to 40' wide. 9" aluminum rafter tube depth,
  • Pinnacle FSFG
  • Pinnacle Hurricane Resistant: 3.5 or 6" aluminum rafter, tested to meet 80 psf design pressure, and small and large missile impact. Available with laminated or insulated glazing.
Photos

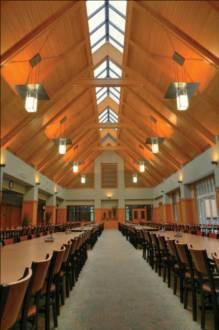

Structural Ridge Skylights
For spectacular large-scale custom structures spanning up to 40 feet, and at any pitch you desire between 15 and 60.
Photos

Lean-To Skylights
For spectacular large-scale custom structures spanning up to 40 feet, and at any pitch you desire between 15 and 60.

Photos

Low Profile Systems for Commercial and Residential Skylight Designs

Wasco's striking Low Profile System offers architects, engineers and developers unlimited possibilities for spectacular and sophisticated custom skylighting designs. Available with single or double glazed glass, the non-structural Low Profile System can provide an effective and easy-to-install solution for sunrooms and other residential design concepts.

Low Profile Skylight Specifications:

  • For pitched roof applications where structural support by others is provided below the skylight rafters
  • Structural support is required under rafters and purlins
  • Prefabricated sections are simple to assemble and glaze
  • Available in self-flash style and curb mount for unlimited pitched applications
  • Minimum recommended roof pitch is 3:12
Photos
